Product Details:
|
| Product Name: | Variable Band Tri Band Repeater | Frequency: | DCS WCDMA 4G2600 |
|---|---|---|---|
| Advantage: | Adjustable Repeater | Output Power: | 20dBm |
| Gain: | 70dB | Weight: | 9kg |
| Highlight: | mobile phone signal repeater,cell signal repeater |
||

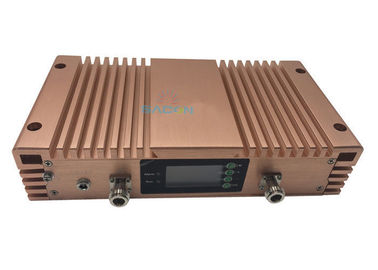

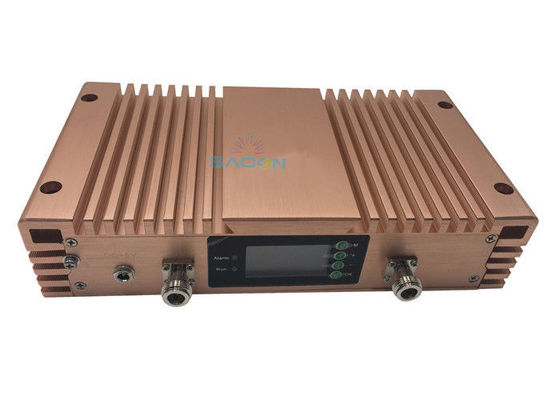

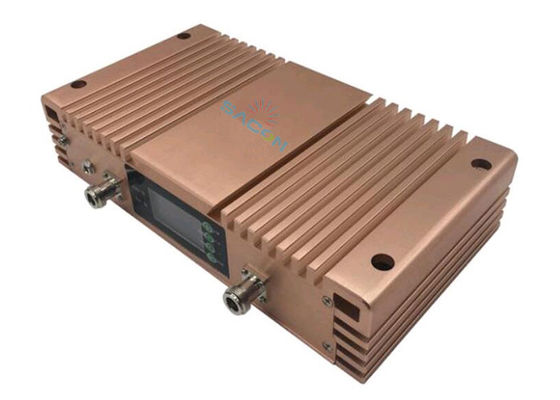

20dBm Variable Band Mobile Signal Repeater 3 Bands DCS 3G 4G LTE 2600Mhz
Description:
20dBm Tri Band Variable Band Repeater SA-20-TR allow small to medium size indoor areas have reliable radio communications for first responders. Automatic gain control allows stable output power even when the handheld is close to the repeater, which protects the donor site from interruption. The unit is housed by a compact and light alumina casting enclosure.
The built-in external LED accessible from the bottom of the enclosure allow the uplink and down link gains, Output Powers, Alarms and so on be configured and optimized easily on site without additional tool. Signal strength indicator helps find donor signal source and set up the system in the field without additional equipment.
Features:
1. Uplink/downlink frequency can be adjusted.
2. Built-in Saw filter provides high out of band rejection
3. Built-in switches and signal strength indicator allow find donor signal source and set up the system on site without additional equipment
4. External 100-240V AC universal power supply
5. Indoor wall mount
6. Heatsink convection cooling and low power consumption
7. Built-in ALC provides stable output power even when the handheld is close to the repeater to minimize the interference to the donor site
Specifications:
| Items | Uplink | Downlink | |
| Frequency Range DCS/LTE1800 | 1710~1785MHz | 1805~1880MHz | |
| Frequency Range WCDMA | 1920-1980MHz | 2110-2170MHz | |
| Frequency Range LTE2600 | 2500-2570MHz | 2620-2690MHz | |
| Variable Bandwidth | 1-25MHz | 1-25MHz | |
| Frequency Adjustment Step | 200KHz | 200KHz | |
| Output Power | 17±2dBm | 20±2dBm | |
| Gain | 65±3dB | 70±3dB | |
| Ripple | ≤6dB | ≤6dB | |
| VSWR | ≤2 | ≤2 | |
| Max. Input Power Without Damage | -10dBm | -10dBm | |
| ATT step of 1dB | 1 ~ 10dB | ∣△∣≤1dB | ∣△∣≤1dB |
| 10 ~ 20dB | ∣△∣≤1dB | ∣△∣≤1dB | |
| 20 ~ 25dB | ∣△∣≤1.5dB | ∣△∣≤1.5dB | |
| ALC Active 10dB | ∣△∣≤2dB | ∣△∣≤2dB | |
| Out of Band Gain | ±5MHz | ≤ 30dB | ≤ 35dB |
| Intermodulation Products | ≤ -40dBc | ≤ -40dBc | |
| Spurious Emission | 9KHz~1GHz | ≤ -30dBm | ≤ -30dBm |
| 1GHz~12.75GHz | ≤ -30dBm | ≤ -30dBm | |
| Noise Figure @ max. gain | ≤ 8dB | ≤ 8dB | |
| Time Delay | ≤ 5μs | ≤ 5μs | |
| Alarm | ALC not Active | Blue | Blue |
| ALC Active 5-10dB | Orange | Orange | |
| ALC Active 15-20dB | Red | Red | |
| broken | No Light | ||
| self-excitation | Red flashes | ||
| Run | normal | Blue | |
| self-excitation | Red | ||
| Power Supply | AC100V ~ 240V to 5V | ||
| Power Consumption | ≤30W | ||
| Dimensions | 268mmx325mmx120mm | ||
| Weight | 9kg | ||
| RF Connector | N-Female | ||
| Environment Conditions | IP40 | ||
| Temperature | -20ºC to +55ºC | ||
| Humidity | < 90% | ||
Applications:
This adjustable tri band repeater is mainly used in areas with no or weak signal such as office restaurants, apartments, shopping malls,, parking lots etc.
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Standard Package:
1) Power supply adapter 1PCS
2) M6x40mm Screw with wallboard anchor 4PCS
3) User manual 1PCS
4) DCS 3G 4G Tri Band Mobile Repeater 1PCS
